Phase diagram of anisotropic particles with octahedral symmetry
Jump to navigation
Jump to search

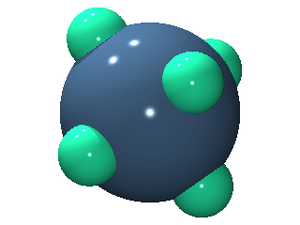

The phase diagram of anisotropic particles (also known as patchy particles) that have octahedral symmetry [1]. The octahedral symmetry is achieved via six attractive patches using the modulated patchy Lennard-Jones model.

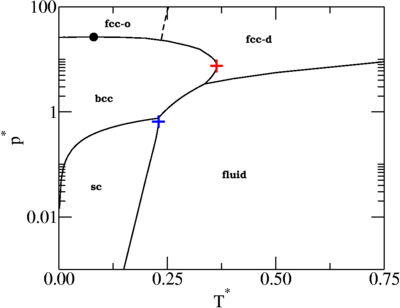

Pressure-temperature plane[edit]
Key: fcc-o: face centred cubic (ordered), fcc-d:face centred cubic (disordered), bcc: body centred cubic and sc: simple cubic lattice.

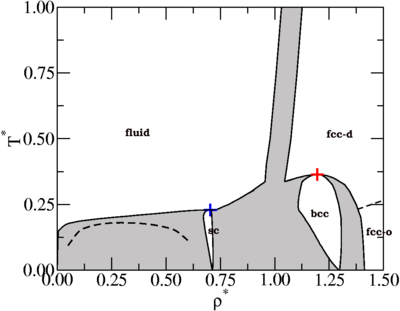

Density-temperature plane[edit]
Key: as above.
References[edit]
